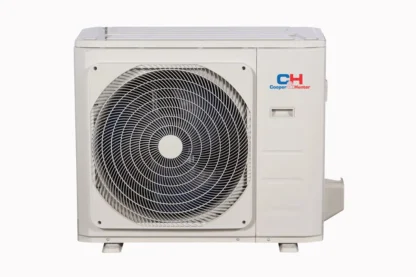

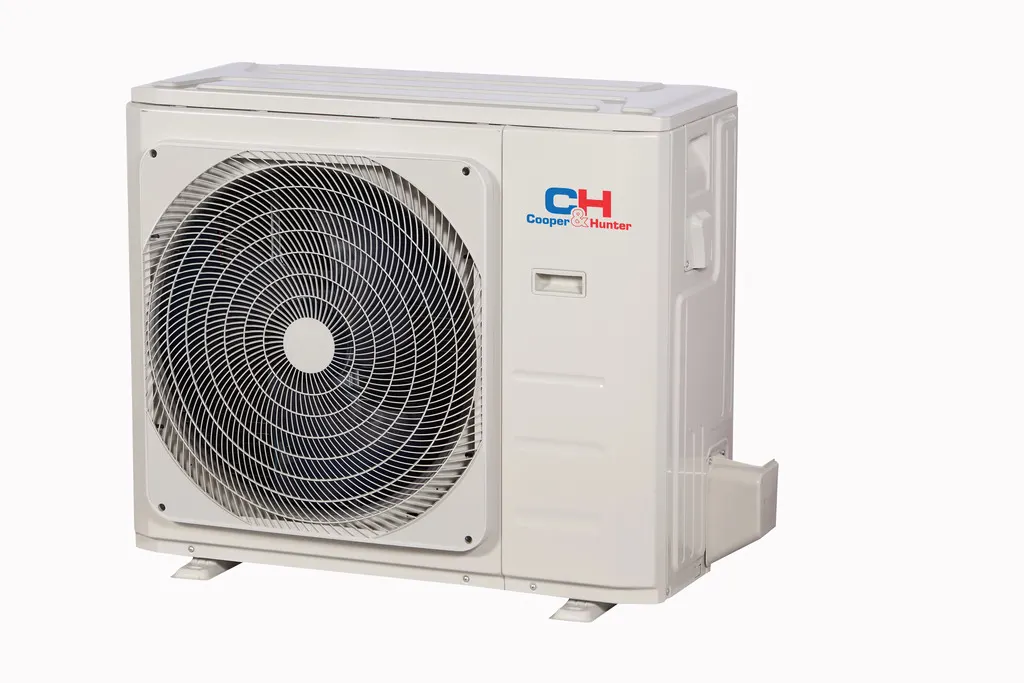

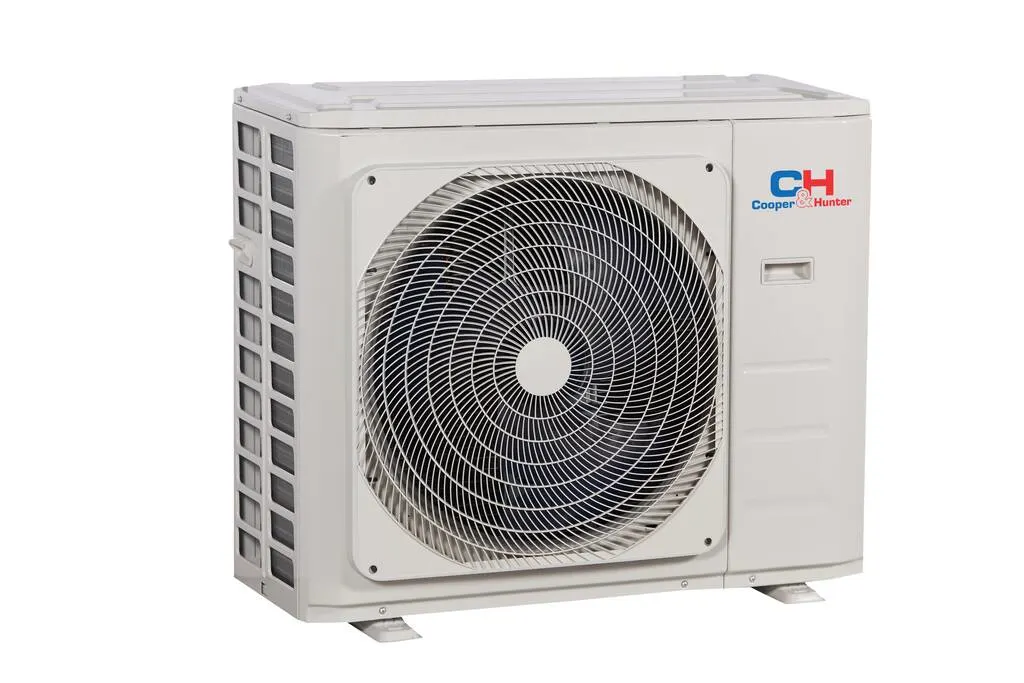

The new C&H Multi Zone Hyper Heat condenser series, which is available in 19K, 28K, 36K, and 48K capacities, provides dependable cooling and heating in ambient temperatures as low as -22°F with up to 22 SEER. These outdoor units can accommodate up to 5 independent zones with a mix-and-match of indoor model types including Wall Mounts, Ceiling Cassettes, Universal Floor/Ceiling, Mini Floor Consoles, Slim Ducts, and Air Handler Units.
6 in stock
| DIMENSIONS | |||
| INDOOR UNIT | OUTDOOR UNIT | ||
| Net Dimension (W*H*D) | 37.24 x 16.14 x 31.89 in
946 x 410 x 810 mm |
Net Dimension (W*H*D) | 37.24 x 16.14 x 31.89 in
946 x 410 x 810 mm |
| Packing Dimension (W*H*D) | 42.91 x 19.69 x 34.84 in
1090 x 500 x 885 mm |
Packing Dimension (W*H*D) | 42.91 x 19.69 x 34.84 in
1090 x 500 x 885 mm |
| WEIGHT | |||
| INDOOR UNIT | OUTDOOR UNIT | ||
| Net/Gross | 138.23 / 149.03 lb
62.7 / 67.6 kg |
Net/Gross | 138.23 / 149.03 lb
62.7 / 67.6 kg |
| PERFORMANCE | |||
| Cooling Capacity (Min/Max) (BTU/h) | 19000 | ||
| SEER | 22 | ||
| Outdoor Noise Level (dB) | 61 | ||
| Outdoor Compressor Type | Rotary | ||
| WHOLESALER | |||
| LOADING x CONTAINER | 40HQ Floor Loaded | ||
| Sets | Pcs | ||
| BTU | 19000 |
|---|---|
| SEER | 22 |
| CERTIFICATE | AHRI 205263896 |
| Capacity | 19K BTU |
| Product Type | Cooling & Heating |
| Products | Multi Zone |
| Refrigerant | not specified |
