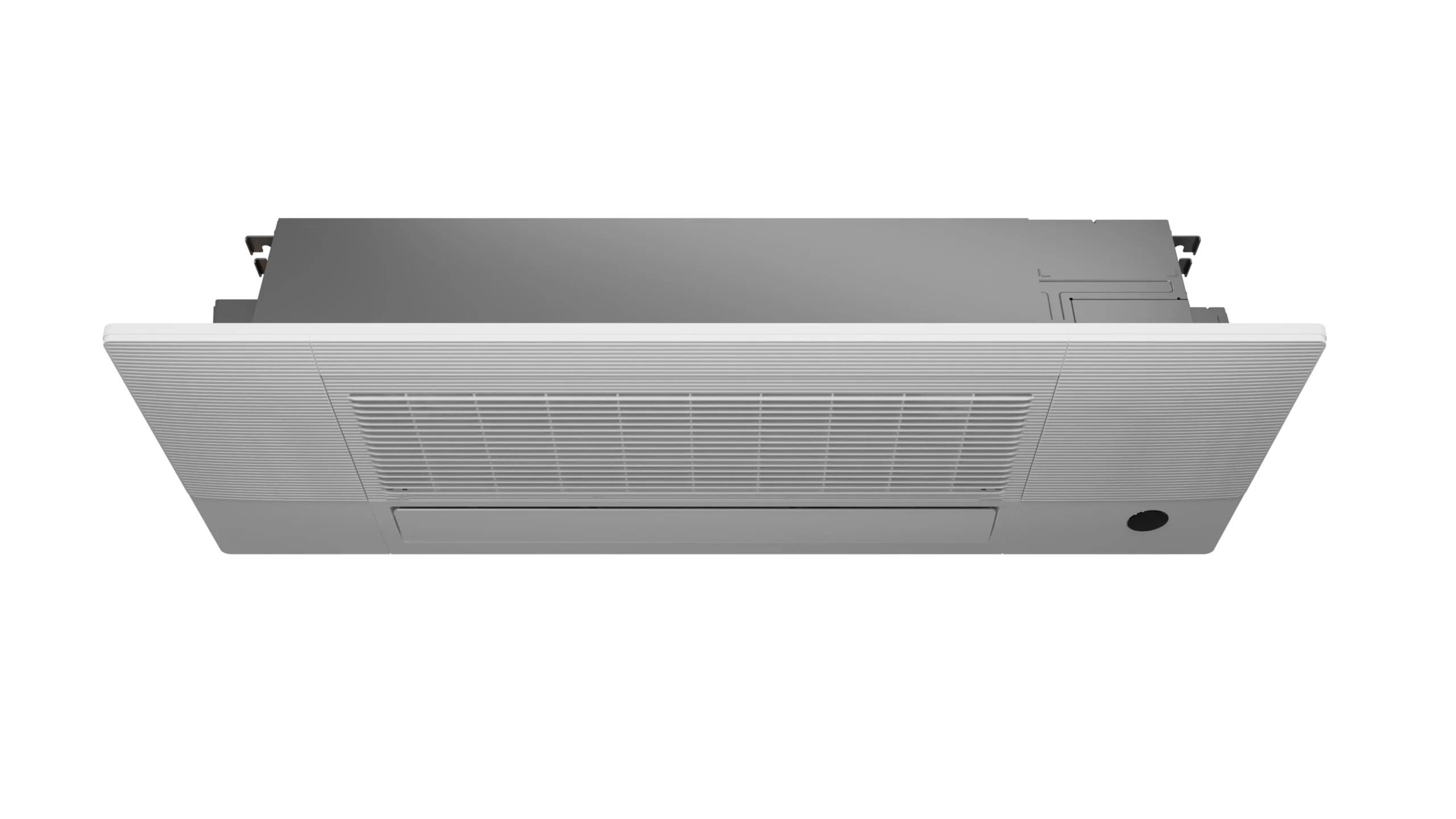

One-Way Cassette has installation flexibility, which makes it ideal for smaller spaces like homes, additions, conversions, or closets. It was designed to provide precise directional cooling and heating with customized settings based on the specific needs of a space. Measuring 13.19 inches in width and 9 inches in depth the One-Way Cassette fits perfectly snugly between structural ceiling beams and it only requires 3-inch holes for conduits. Available in capacities 6K, 9K, 12K, and 18K BTU/h, it is compatible with both single and multi-zone applications.
4 in stock
| Description | Value (in) | Value (mm) |
|---|---|---|
| Unit Dimensions (WHD) | 50.31 x 13.19 x 8.98 | 1278 x 335 x 228 |
| Packing Dimensions (WHD) | 57.60 x 22.48 x 22.64 | 1463 x 571 x 575 |
| Description | Weight (lb) | Weight (kg) |
|---|---|---|
| Net/Gross Weight | 45.19 / 82.89 | 20.5 / 37.6 |
| Description | Value |
|---|---|
| Cooling Capacity (BTU/h) | 18,000 |
| SEER2 | 21.8 |
| EER2 | 12.5 |
| Indoor Noise Level (H/M/L) (dB) | 44 / 40.5 / 35 |
| Indoor Air Flow (H/M/L/X-L) (CFM) | 400.00 / 351.76 / 300.00 / 207.06 |
| Dehumidification Value (pints/day) | 4.61 |
| Description | Value |
|---|---|
| Refrigerant Piping Liquid/Gas Side (inch) | 1/4″ – 1/2″ |
| Voltage Range (V) | 187-253 |
| Minimum Circuit Ampacity | 3 |
| Max Fuse | 15 |
| Drainage Water Pipe Diameter (inch) | 1″ |
| Controller | RG10K-exclusive remote & 120X or 120N wire controller |
| Mode | Temperature Range (°F) |
|---|---|
| Heating | 32 ~ 86 |
| Cooling | 60 ~ 90 |
| BTU | 18,000 |
|---|---|
| SEER2 | 21.8 |
| CERTIFICATE | No Data |
| Capacity | 18K BTU |
| Product Type | Cooling & Heating |
| Products | Single Zone |
| Refrigerant | not specified |
